Name: 8-5/8" Slot 20 Wire Wrapped Screen For Deep Wells
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY062702
Price: 105.00 USD
Availability: InStock

Huis > PRODUCTEN > Het draad Verpakte Scherm >

8-5/8" Slot 20 Wire Wrapped Screen For Deep Wells

8-5/8” Wire Wrapped Screen

Deep Well Wire Wrapped Screen

8-5/8" wedge screen filter

Plaats van herkomst:

Anping, Hebei, China

Merknaam:

HengYuan

Certificering:

ISO, CIQ, SGS, CE

Modelnummer:

HY062702

Contacteer ons

Verzoek om een Citaat

Productdetails

Naam:

Het draad verpakte scherm

materiaal:

Roestvrij staal 304

lengte:

3 m

Diameter:

85/8“

Techniek:

Puntlassen

Kenmerken:

niet-belemmert

Toepassing:

filteration

Pakket:

houten dozen, container

Verwante Producten

Video

Rod Based Wire Wrapped Screen Of Stainless Steel For Water Wells

Krijg Beste Prijs

Video

8-5/8" Slot 20 Wire Wrapped Screen For Deep Wells

Krijg Beste Prijs

Video

0.3mm Slot Wire Wrapped Screen Pipe Of SS316L For Oil Wells

Krijg Beste Prijs

Video

Het Scherm van de profieldraad, SS 304 Vee Wire Screen Tube, Draad Verpakte het Schermpijp

Krijg Beste Prijs

Contacteer ons

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact nu

Productomschrijving

8-5/8" Slot 20 Wire Wrapped Screen For Deep Wells

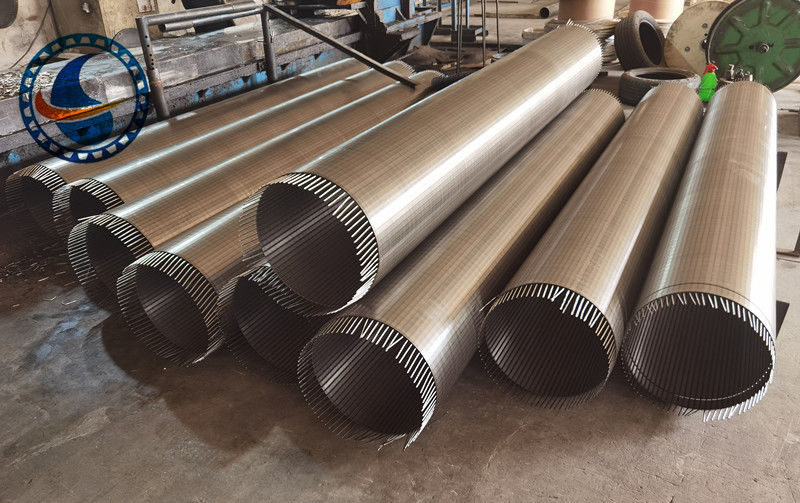

Wire Wrapped Screen for deep water well is manufactured by a Vee or wedge shaped wire around an internal array of longitudinal support rods.

Each intersecting point of these wire is fusion welded.

The Vee or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities,while at the same time keeps the majority of sand and gravel out of the well.

Wire wrapped screen pipe is made up of Vee-shaped wire and round rod in each intersection welded together.

Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface.

The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly.It has the firm structure, high temperature resistant, corrosion resistance, good mechanical performance, long service life, safe and reliable, etc.

It also can be used for a variety of medium.

Wire Wrapped Screen information:

Material	Stainless Steel or Low Carbon Galvanized steel
Diameter	3-1/2”, 4-1/2”, 6-5/8”, 8-5/8”, 10-3/4”, 12-3/4” etc.
Slot	0.5mm, 0.63mm, 0.75, 1.0mm, or as per customers’ requirement
Length	2.9m and 5.8m to fit container. Upto 6meters
End connection	Welded rings, Male/female threaded
Note	Parameters can be customized as per clients' requirements

If you have any enquires please feel free to contact us !

We can make the size according to your drawing.

Hengyuan factory located in Anping country , Hebei Province,China.

Hengyuan mainly products are : stainless steel vee sharped wire / wrap wire,johnson screeen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen,screen nozzle / water and gas strainer ,sieve plate ,slot mesh ,ARC screen ,header and hub laterals & hub radial laterals , pipe base , crimped wire mesh / stainless steel wire mesh / perforated wire mesh etc.
